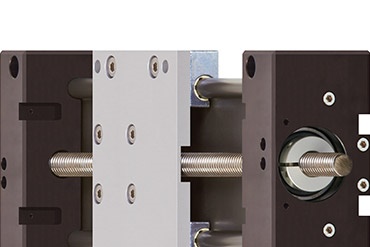

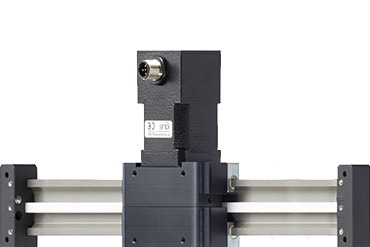

drylin drive technology consists of a wide range of products ranging from lightweight linear axes made of polymer to solid stainless steel solutions; they work without the use of external lubricants. The movement of the linear axes is implemented either via lead screws, toothed belts or racks. igus offers the customer suitable solutions for the most individual applications. In all systems, the length of the stroke is freely selectable and the drive of the linear units can be implemented using optionally available equipment in the form of hand wheels or various motors. Positioning tables driven by lead screws are the preferred choice for applications with high axial shear forces, which therefore require the highest precision.

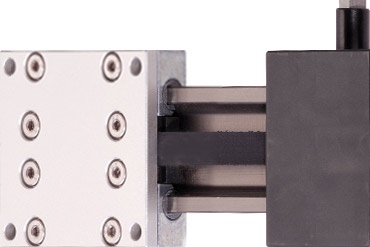

Across models, the linear modules can be equipped with trapezoidal or high helix lead screws. Linear axes with toothed belt drives are designed for long travels and highest speeds in applications with high repeatability and short cycle times.
The linear units for high speed and long travels with direct power transmission via racks offer the additional benefit of allowing multiple carriages to move independently and clearance-free of each other, on one system.
Lubrication-free due to polymer bearings and polymer nuts2
3 shaft materials3
8 trapezoidal thread pitches, 4 high helix thread pitches
Body material made of stainless steel, aluminium, zinc or polymer5

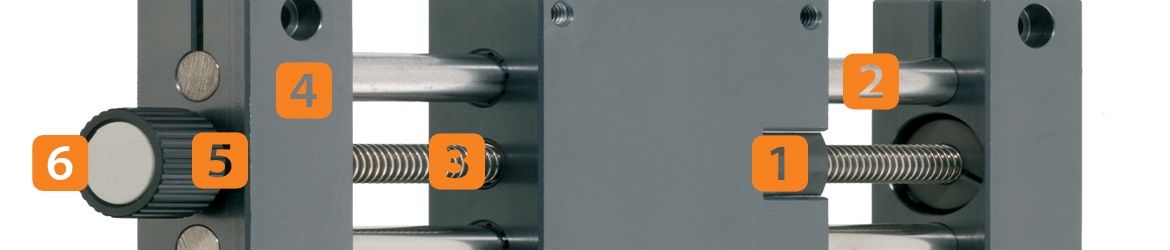

Lead screw machined to drawing or plain drive shaft6
End supports with ball bearing2
Lubrication-free linear guide with polymer plain bearings3
Various carriage lengths

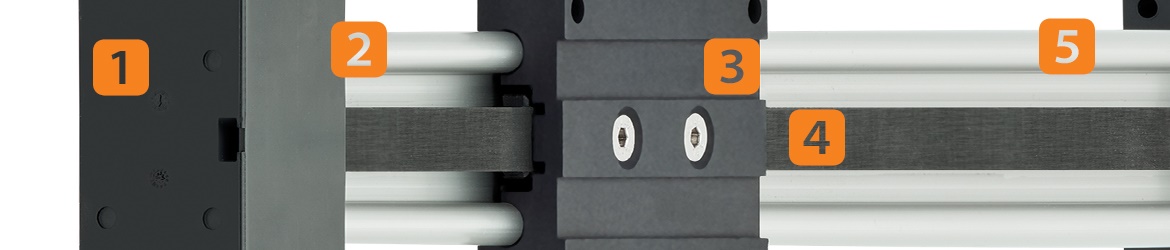

Polyurethane (PU) or neoprene toothed belt5

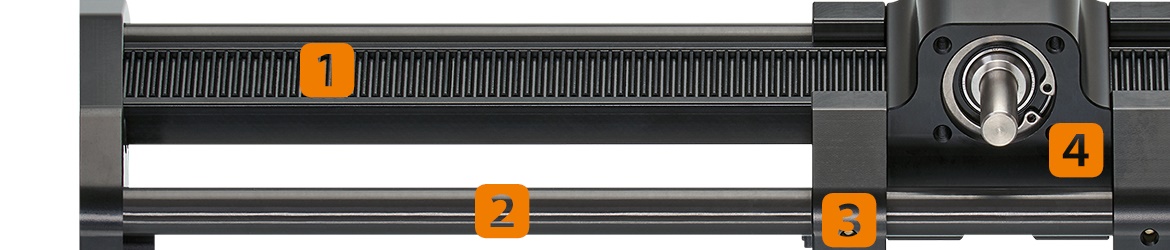

Direct force transfer via rack2
Torsional rigidity through aluminium hollow shaft drylin AWMR
Lubrication-free and maintenance-free due to drylin R linear liners4
Dynamic mass (0.9 kg) enables fast operation

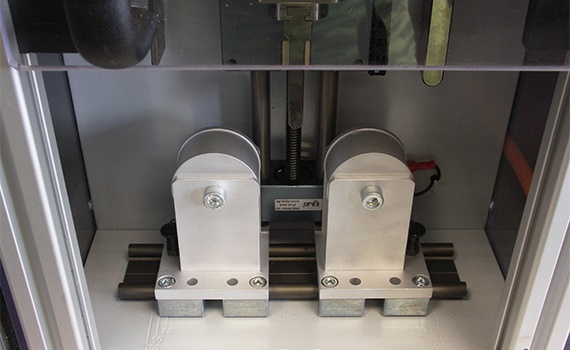

This device was built to test welds thoroughly. Bending specimens with a force of 5,000N are possible with this machine. In addition to the standard drylin lead screw unit range, which implements the format adjustment of the bending die, linear guides of the drylin W series are also used. With them, the specified support distances are adjustable.

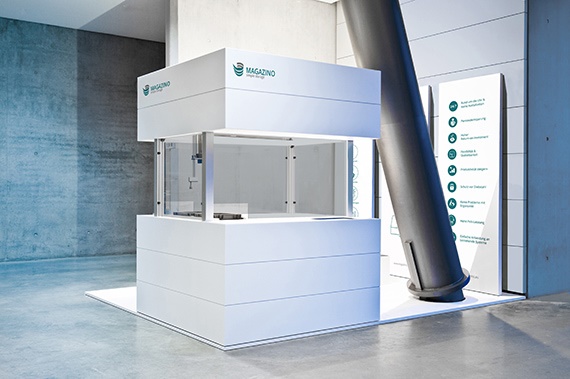

Assisted by drylin linear units with toothed belt axes (ZLW 1040 and ZLW 1080), an automatic picking station equipped with 2D and 3D cameras automatically recognises empty containers. The systems are one hundred percent lubrication-free and are characterised by extreme smoothness, the achievement of high speeds and a great degree of accuracy.
Find further successful customer application examples with drylin drive technology.
