Connectors

With plug-in connectors, igus® relies on companies that have proven that they can provide the necessary product quality and reliability. From the product range of Intercontec, Harting and Yamaichi, igus® offers industrial plug-in connectors that fulfil demanding requirements.
For industrial applications, the following connector types can be found in the shop:

Signal round connector
Plug-in connector
Combined signal and plug-in connector
Connector with plastic or metal clamping ring
Protection housing for especially demanding environments
Overmoulded plug-in connectors
Harnessed drive cables
M12 and M23 plug-in connectors

Harnessing readychain®

Harnessing readychain®

Ready-to-connect energy supply systems optimise your procurement process, reduce your internal logistics costs and reduce assembly time.

Products

Number of products: 40

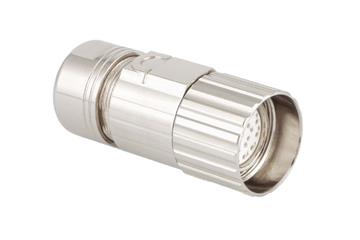

Standard connector, series A, M23 signal plugs

Standard connector, series A, M23 signal plugs

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Female crimp
Plug design: Signal connector

from 17.71 USD / Pc.

To the product page

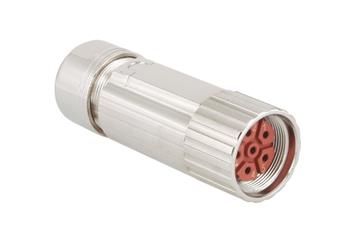

Standard connector series B, M23 power connector

Standard connector series B, M23 power connector

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush

from 30.00 USD / Pc.

To the product page

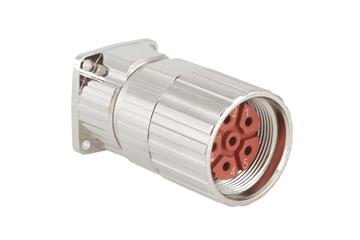

Standard connector, series B, M23 standard feed-through with coupling nut

Standard connector, series B, M23 standard feed-through with coupling nut

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush

from 58.86 USD / Pc.

To the product page

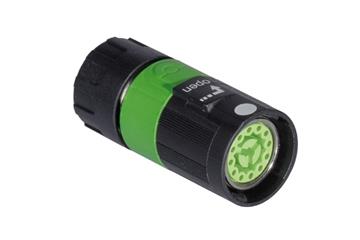

series 615 signal connector, 12-pole with plastic clamping ring

series 615 signal connector, 12-pole with plastic clamping ring

Material: Zinc die-casting,/brass, nickel-plated and plastic coated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: PA modif., 30% Gf.
Clamping ring material: Brass, nickel-plated / PA modif., 30% Gf.
Contacts: Brass, gold-plated
Seal: FPM / EPDM
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Female crimp

from 21.66 USD / Pc.

To the product page

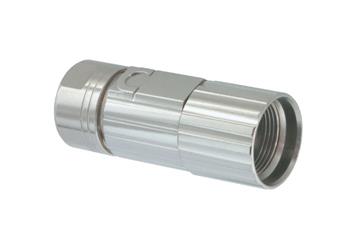

Standard connector, series 617, M17 signal plugs

Standard connector, series 617, M17 signal plugs

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM
Insulation body: PBT, UL 94/V0
Contact type: Crimp bush, slotted

from 42.76 USD / Pc.

To the product page

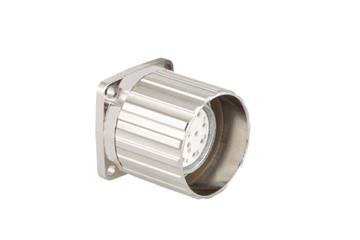

Standard connector, series A, M23 standard feed-through with coupling nut

Standard connector, series A, M23 standard feed-through with coupling nut

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp contact bush, slotted
Plug design: Bulkhead connector with union nut

from 14.79 USD / Pc.

To the product page

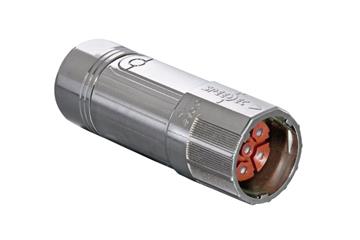

Speedtec connector series B, M23 power connector

Speedtec connector series B, M23 power connector

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush
SpeedTec

from 30.01 USD / Pc.

To the product page

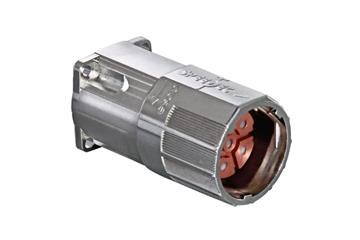

Speedtec connector, series B, M23 standard feed-through with coupling nut

Speedtec connector, series B, M23 standard feed-through with coupling nut

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush
SpeedTec

from 45.38 USD / Pc.

To the product page

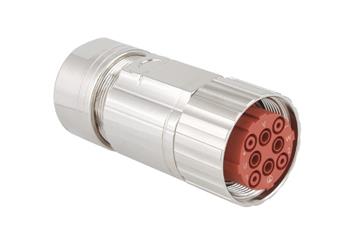

Standard connector series C, M40 power connector

Standard connector series C, M40 power connector

Material: Magnesium die-casting/Aluminium
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: HC crimp bush

from 34.49 USD / Pc.

To the product page

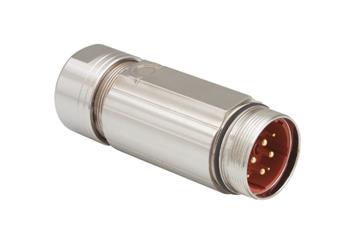

Standard connector, series C, M40 power coupling

Standard connector, series C, M40 power coupling

Material: Magnesium die-casting/Aluminium
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp pin

from 82.07 USD / Pc.

To the product page

connector, series 615, signal plugs

connector, series 615, signal plugs

Material: Zinc die-casting,/brass, nickel-plated and plastic coated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: PA modif., 30% Gf.
Clamping ring material: Brass, nickel-plated / PA modif., 30% Gf.
Contacts: Brass, gold-plated
Seal: FPM / EPDM
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Female crimp

from 28.78 USD / Pc.

To the product page

plug-in connector series 915, power connector

plug-in connector series 915, power connector

Material: Zinc die-casting,/brass, nickel-plated and plastic coated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: PA modif., 30% Gf.
Clamping ring material: Plastic
Contacts: Brass, gold-plated
Seal: FPM / EPDM
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp bush, slotted

from 18.25 USD / Pc.

To the product page

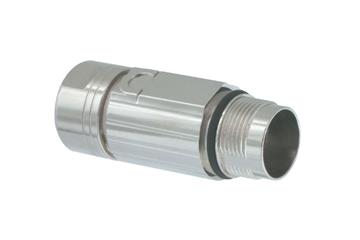

Standard connector, series 617, M17 signal coupling

Standard connector, series 617, M17 signal coupling

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM
Insulation body: PBT, UL 94/V0
Contact type: Crimp pin

from 38.87 USD / Pc.

To the product page

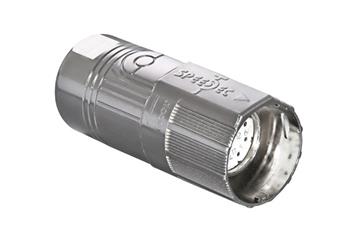

Speedtec connector, series A, M23 signal plugs

Speedtec connector, series A, M23 signal plugs

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp bush, slotted
Plug design: Signal connector
SpeedTec

from 16.71 USD / Pc.

To the product page

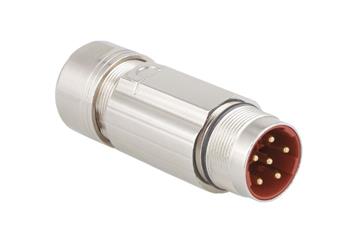

Standard connector, series B, M23 power coupling

Standard connector, series B, M23 power coupling

Material: Zinc die-casting/brass, nickel-plated
Pollution degree: 3
Protection class: IP 66/67 [plugged]
Over-voltage category: III
Temperature range: -20 °C to +130 °C
Union nut/screw: Brass, nickel-plated
Clamping ring material: Brass, nickel-plated
Contacts: Brass, gold-plated
Seal: FPM/HNBR
Insulation body: PA 6.6/PBT, UL 94/V0
Contact type: Crimp pin

from 29.31 USD / Pc.

To the product page
