In 3D applications, rotating and pivoting movements are part of everyday life. Energy chains are required here, which safely guide and protect robot cables. The triflex R (TRE, TRC and TRL) energy chain has been specifically developed for demanding multi-axis robots. Due to its high tensile force absorption and high flexibility, the energy chain enables a rotation of about ±10° per chain link with complicated motions in the vertical axes. Compared to a cable protection hose, triflex R offers a defined bend radius, which greatly increases the service life of cables and hoses.

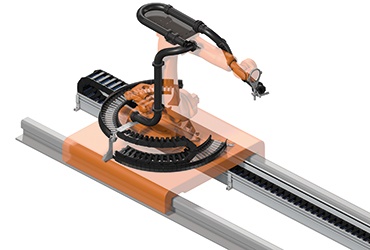

I am looking for an energy supply system for axes 2-6 on an industrial robot, and also spare parts or accessories to guide cables or hoses safely on the robot.
I am unsure which energy chain I should choose for my application and need more support/information.
Here you will find the latest products and product enhancements in the field of robotics.

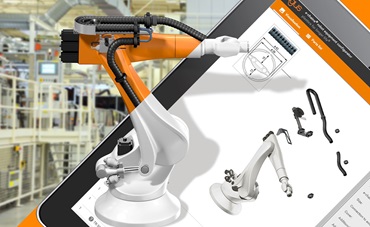

Extension of the robot equipment configurator by:
Closed version - completely openable
Assemble your own energy supply for a Fanuc CRX.

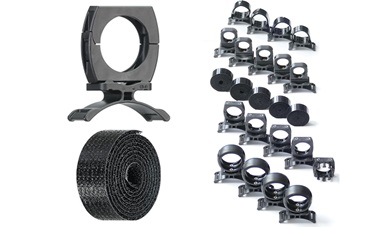

A simple, safe and quick way to attach an energy supply to cobots or miniature robots.
