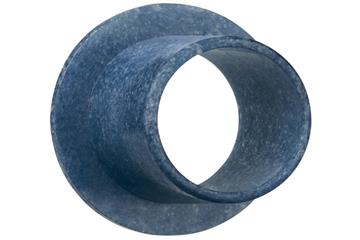

iglidur® A350 | The endurance runner at higher temperatures in the food sector
iglidur® A350 plain bearings are made for practically all loads in the food and packaging industry. Even high loads, often seen in lifting equipment or presses, are accommodated easily and the bearings work flawlessly without any additional lubrication.

Typical application areas

Food industry
Beverage industry
Medical technology

You can find further applications here:
Industry solutions



When to use it? When FDA-compliance is required If wear-resistance and FDA conformance are necessary at high loads If the bearing is used in an acid environment

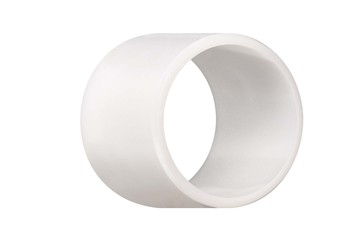

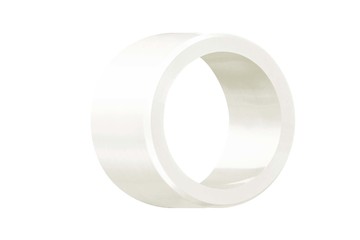

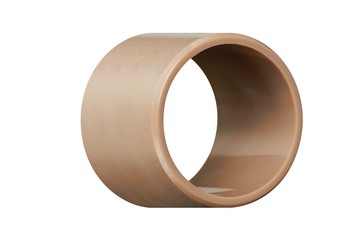

When not to use it? When temperatures are continuously greater than +180°C iglidur® A500, sleeve bearing, mm When the maximum wear resistance is necessary iglidur® J, sleeve bearing, mm When a cost-effective FDA bearing is required iglidur® A200, sleeve bearing, mm iglidur® A180, sleeve bearing, mm For high speeds iglidur® J, sleeve bearing, mm

Use our filter options to find the suitable product

Tolerances and measurement system
The installation dimensions and tolerances of iglidur® plain bearings are a function of the material and wall thicknesses. For each material, the moisture absorption and the thermal expansion are decisive factors. Plain bearings with low moisture absorption can be designed with a minimal bearing clearance. The rule for wall thickness: the thicker the wall of the bearings, the larger the clearances must be.
Testing methods

Assembly
iglidur® plain bearings are press-fit bearings. The inner diameter adjusts only after press-fitting in the correctly toleranced housing. The press-fit excess dimension can be up to 2% of the inner diameter. This ensures the secure press-fitting of the bearing. Axial or radial movement in the housing are prevented this way.
iglidur® - assembling, gluing, machining
