drylin® N - Low profile linear guide system NK-02-40

You are now leaving igus.co.nz

The selection of the country/region page can influence various factors such as price, shipping options and product availability.

When switching pages, we will try to match the items in your shopping cart with those available for your country.
Please check your shopping cart after switching, thank you!

Order no.	Max. rail lengths	a	C4	C5=C6	h	h1	K1*	ly	lz	Weight of rail	Price / m
NS-01-40	3000	40	60	20	20/49,5	8.7	1.3	M4	26400	970	450	98.15 NZD
NS-01-40-UNGEBOHRT	3000	40	0	0		8.7	1.3		26400	970	450	87.86 NZD
NS-01-40-AR	3000	40	60	20	20/49,5	8.7	1.3	M4	26400	970	450	112.87 NZD


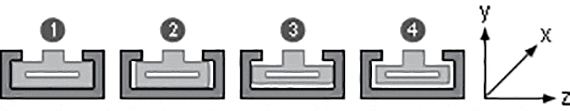

NW-02-40	Carriage clipped on, fixed bearing	30	20.17 NZD
NW-02-40-LLY	Carriage clipped on, floating bearing y-direction	30	20.15 NZD
NW-02-40-LLZ	Carriage clipped on, floating bearing z-direction	30	20.15 NZD
NW-02-40-LLYZ	Carriage clipped on, floating bearing y and z-direction	30	20.15 NZD


NW-02-40	9.5	23	50	40	20	M4	5	6.5	30
NW-02-40-LLY	9.5	23	50	40	20	M4	5	6.5	30
NW-02-40-LLZ	9.5	23	50	40	20	M4	5	6.5	30
NW-02-40-LLYZ	9.5	23	50	40	20	M4	5	6.5	30


NW-12-40	Moulded carriage	30	20.17 NZD
NW-12-40-LLY	Moulded carriage, floating bearing y-direction	30	20.15 NZD
NW-12-40-LLZ	Moulded carriage, floating bearing z-direction	30	20.15 NZD
NW-12-40-LLYZ	Moulded carriage, floating bearing y und z-direction	30	20.17 NZD
NW-12-27	Moulded carriage	12.5	12.26 NZD
NW-12-27-80	Carriage	25	23.47 NZD


NW-12-40	9.5	23	52	40	20	0	M4	5	6.5	30
NW-12-40-LLY	9.5	23	52	40	20	0	M4	5	6.5	30
NW-12-40-LLZ	9.5	23	52	40	20	0	M4	5	6.5	30
NW-12-40-LLYZ	9.5	23	52	40	20	0	M4	5	6.5	30
NW-12-27	9.5	14	34	30	20	0	M4	5	6.5	12.5
NW-12-27-80	0	14	80	76	60	1.5	M4	5	6.5	25

Country/Region

By selecting your country you will be shown local offers and information.

Language settings

Select preferred language:

Page not found

The selected page is not available for . Would you like to switch to the country's homepage instead?

Cancel

Okay

Shopping Cart

The selected article has been added to your shopping cart.
From here you can initiate enquiries or orders.

Continue purchasing

Change to shopping cart

Shopping Cart

It was not possible to add the selected article to the shopping cart.

Okay

Please choose your delivery location

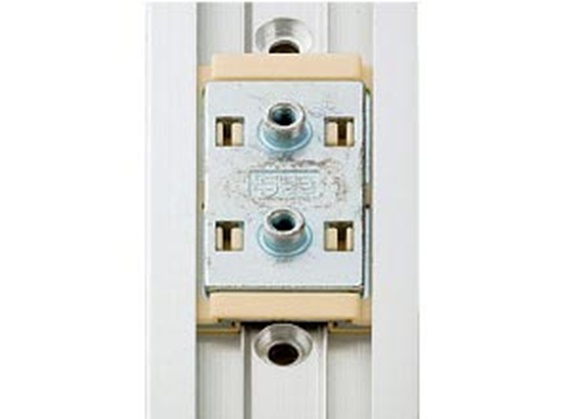

drylin® N - Low profile linear guide system NK-02-40

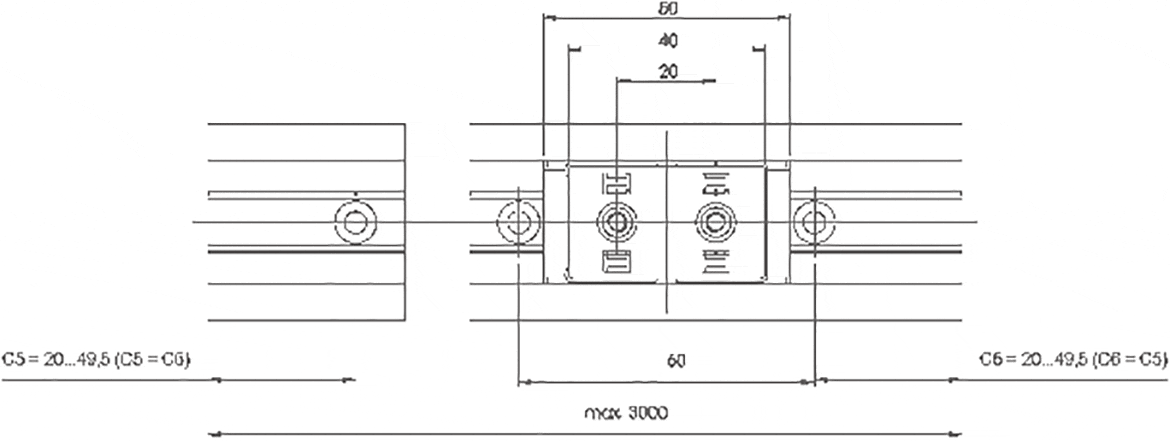

Version 02 with threaded hole:

More about selected part:

Version 02 with threaded hole:

More about selected part:

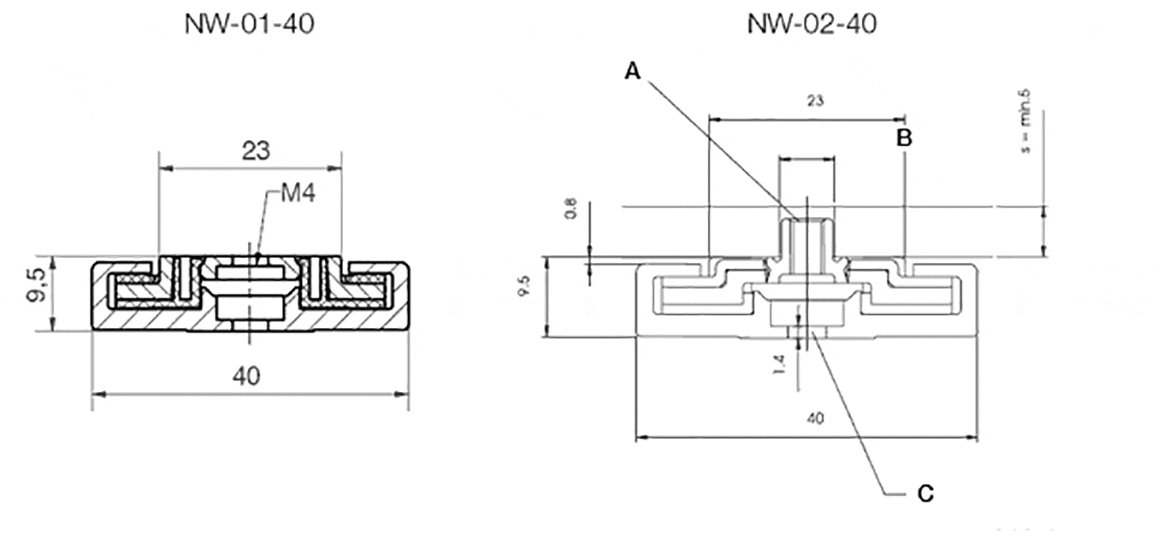

Version 02: Dimensions [mm] - guide carriages

More about selected part:

Version 12 with threaded hole:

More about selected part:

Version 12: Dimensions [mm] - guide carriages

More about selected part:

Ordering of a complete system

Configuration in few steps:

Hint:

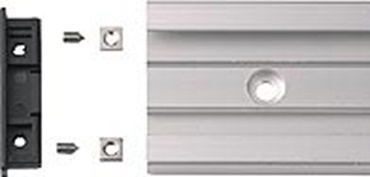

drylin® NK – complete set

Step 1

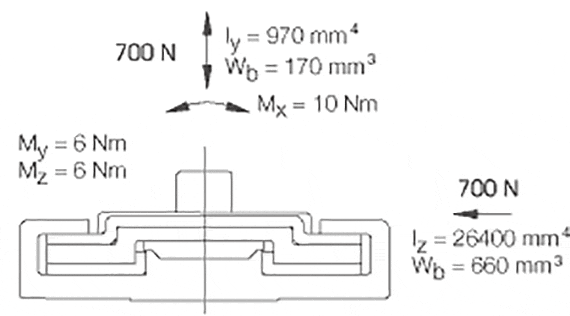

Static load capacity and moments of inertia of an area

Optional:

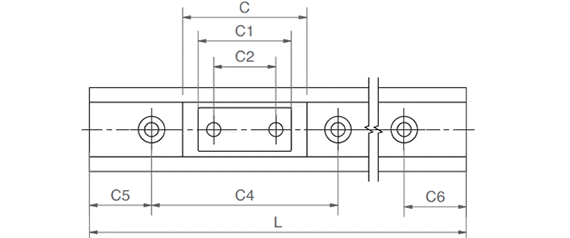

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-40	3000	40	60	0	20	20/49,5	8.7	1.3	M4	26400	970	450	98.15 NZD
NS-01-40-UNGEBOHRT	3000	40	0	0	0		8.7	1.3		26400	970	450	87.86 NZD
NS-01-40-AR	3000	40	60	0	20	20/49,5	8.7	1.3	M4	26400	970	450	112.87 NZD

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-02-40	9.5	23	50	40	20	0	0	M4	5	6.5	30
NW-02-40-LLY	9.5	23	50	40	20	0	0	M4	5	6.5	30
NW-02-40-LLZ	9.5	23	50	40	20	0	0	M4	5	6.5	30
NW-02-40-LLYZ	9.5	23	50	40	20	0	0	M4	5	6.5	30
