Motor cables

chainflex® motor cables are available as PVC and TPE motor cables and as multi-core and single-core cables. Flame-retardant, oil-resistant, halogen-free and UV-resistant versions are available as shielded or unshielded cable. The chainflex® motor cables are used in high speeds and accelerations. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.
  • Bending radii up to 5xd
  • Total shield with optimised braiding angle
  • Jacket materials: PVC, iguPUR, PUR or TPE
more
less
36 month guarantee
36 month guarantee

You can expect that from us.

Products

Categories

Control cables
Data cables
Motor cables
Bus cables
Measuring system cables
Servo cables
Coaxial cables
Fibre Optic Cables (FOC)
Special cables
Robot cables

Filter

Core Requirements
Show details
Cable structure
Material
Electrical information
Requirements
Drive technology system
List
Tile

Number of products: 25

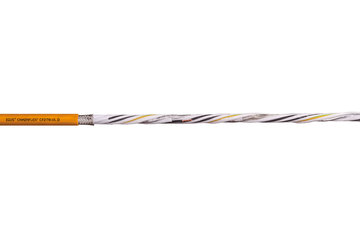

chainflex® servo cable CF270.UL.D
chainflex® servo cable CF270.UL.D
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL/CSA<br>Style 10989 and 21223, 1.000 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified according to No. TC RU C-DE.ME77.B.01255 CTP<br>Certified to no. C-DE.PB49.B.00420 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU UL/CSA<br>Style 10989 and 21223, 1.000 V, 80 °C
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • chainflex® class: 4.2.3.1

from 2.17 USD / ft

To the product page
chainflex® servo cable CF27.D
chainflex® servo cable CF27.D
UV resistance<br>Medium Offshore<br>MUD-resistant following NEK 606 - status 2009 Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 UL/CSA<br>Style 10492 and 20234, 1.000 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified according to No. TC RU C-DE.ME77.B.01255 CTP<br>Certified to no. C-DE.PB49.B.00420 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 20234, 1.000 V, 80 °C
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1

from 3.73 USD / ft

To the product page

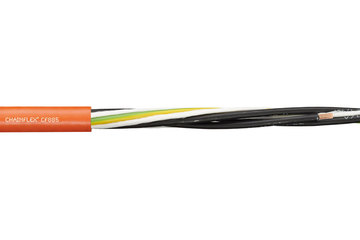

chainflex® motor cable CF885
chainflex® motor cable CF885
Flame retardant<br>According to IEC 60332-1-2, CEI 20, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10492 and 2570, 1.000 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01561 CTP<br>Certified to no. C-DE. PB49.B.00450 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 2570, 1.000 V, 80 °C
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1

from 1.06 USD / ft

To the product page

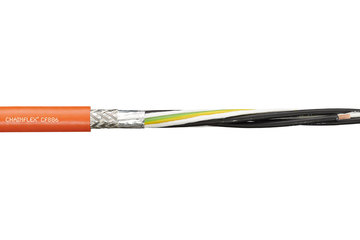

chainflex® motor cable CF886
chainflex® motor cable CF886
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10107, 600 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01561 CTP<br>Certified to no. C-DE. PB49.B.00450 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 2570, 1.000 V, 80 °C
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1

from 1.49 USD / ft

To the product page

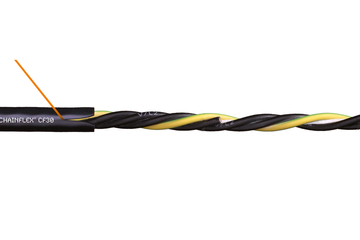

chainflex® motor cable CF30
chainflex® motor cable CF30
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10492 and 2570, 1.000 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified to no. TC RU C-DE. ME77.B.01218 CTP<br>Certified to no. C-DE.PB49.B.00416 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 2570, 1.000 V, 80 °C
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • UV resistance: Medium
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.2

from 1.60 USD / ft

To the product page

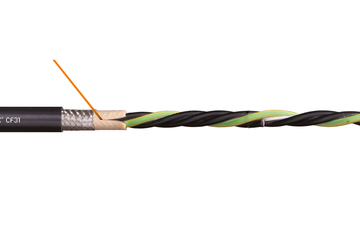

chainflex® motor cable CF31
chainflex® motor cable CF31
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10492 and 2570, 1.000 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 EAC<br>Certified according to No. TC RU C-DE.ME77.B.01255 CTP<br>Certified to no. C-DE.PB49.B.00420 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 2570, 1.000 V, 80 °C
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV resistance: Medium
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.1

from 2.76 USD / ft

To the product page
chainflex® motor cable CF895
chainflex® motor cable CF895
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10492 and 20940, 1.000 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01561 CTP<br>Certified to no. C-DE. PB49.B.00450 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 20940, 1.000 V, 80 °C
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Flame retardant
  • Silicone-free
  • UV resistance: Medium
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • chainflex® class: 3.1.3.1

from 1.33 USD / ft

To the product page

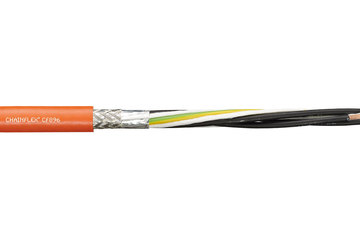

chainflex® motor cable CF896
chainflex® motor cable CF896
UV resistance<br>Medium Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10492 and 20940, 1.000 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01561 CTP<br>Certified to no. C-DE. PB49.B.00450 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 20940, 1.000 V, 80 °C
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV resistance: Medium
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 3.1.3.1

from 1.80 USD / ft

To the product page

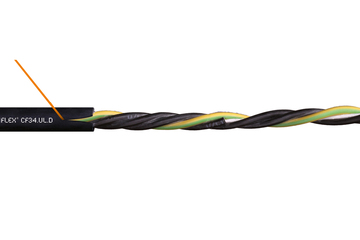

chainflex® motor cable CF34.UL.D
chainflex® motor cable CF34.UL.D
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10492 and 21184, 1.000 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH CTP<br>Certified to no. C-DE.PB49.B.00420 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 2, material/cable tested by IPA according to ISO standard 14644-1. DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 21184, 1.000 V, 80 °C
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 6.6.4.2

from 2.38 USD / ft

To the product page

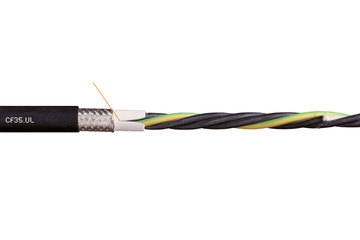

chainflex® motor cable CF35.UL
chainflex® motor cable CF35.UL
UV resistance<br>High Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10492 and 21184, 1.000 V, 80 °C NFPA<br>Following NFPA 79-2012 chapter 12.9 DNV-GL<br>Certified according to DNV-GL Type Testing – Certificate No.: 61 935-14 HH EAC<br>Certified according to No. TC RU C-DE.ME77.B.01255 CTP<br>Certified to no. C-DE.PB49.B.00420 Lead free<br>Following 2011/65/EU (RoHS-II) CEI<br>Following CEI 20-35 Clean room<br>According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU UL/CSA<br>Style 10492 and 21184, 1.000 V, 80 °C
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 6.6.4.1

from 1.86 USD / ft

To the product page
chainflex® motor cable CF37.D
chainflex® motor cable CF37.D
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 EAC<br>Certified according to No. TC RU C-DE.ME77.B.01255 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA<br>According to VDW, DESINA standardization CE<br>Following 2014/35/EU
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • CFRIP®
  • chainflex® class: 7.6.4.2

from 2.41 USD / ft

To the product page
chainflex® motor cable CF38
chainflex® motor cable CF38
UV resistance<br>High Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free<br>Following EN 60754 EAC<br>Certified according to No. TC RU C-DE.ME77.B.01255 Lead free<br>Following 2011/65/EU (RoHS-II) Clean room<br>According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 CE<br>Following 2014/35/EU
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Overall shield
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • CFRIP®
  • chainflex® class: 7.6.4.1

from 2.98 USD / ft

To the product page

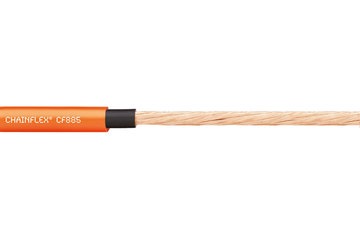

chainflex® motor cable CF885, lead screw cable/single core
chainflex® motor cable CF885, lead screw cable/single core
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10107, 600 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01561 CTP<br>Certified to no. C-DE. PB49.B.00450 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1

from 0.59 USD / ft

To the product page

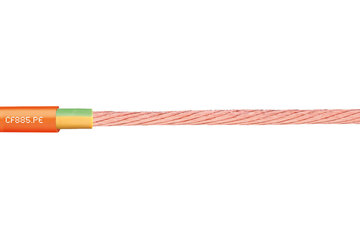

chainflex® motor cable CF885.PE, lead screw cable/single core
chainflex® motor cable CF885.PE, lead screw cable/single core
Flame retardant<br>According to IEC 60332-1-2, CEI 20, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10107, 600 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01561 CTP<br>Certified to no. C-DE. PB49.B.00450 CE<br>Following 2014/35/EU UL/CSA<br>Style 10107, 600 V, 80 °C
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1

from 0.49 USD / ft

To the product page
chainflex® motor cable CF886, lead screw cable/single core
chainflex® motor cable CF886, lead screw cable/single core
Flame retardant<br>According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free<br>Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA<br>Style 10107, 600 V, 80 °C EAC<br>Certified to no. TC RU C-DE. ME77.B.01561 CTP<br>Certified to no. C-DE. PB49.B.00450 Lead free<br>Following 2011/65/EU (RoHS-II) CE<br>Following 2014/35/EU UL/CSA<br>Style 10107, 600 V, 80 °C
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1

from 2.17 USD / ft

To the product page
